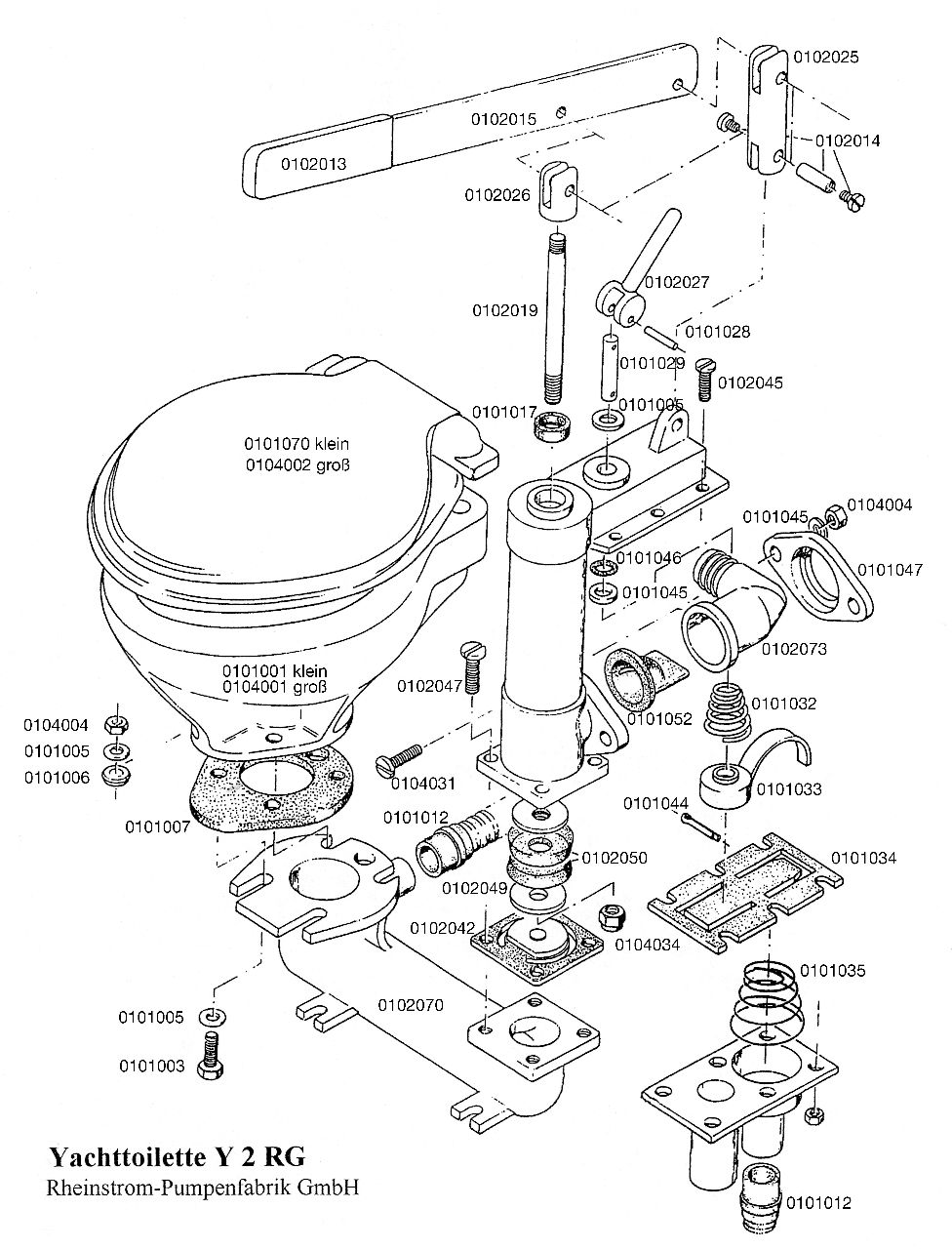

Standard Reparatursatz für die Y2-Toiletten von RHEINSTROM.

Inhalt:
4 x Kunstoffscheibe weiß 0101006
1 x Trichterdichtung oval (alter Typ) 0101007
1 x Trichterdichtung rund (neuer Typ) 0103007

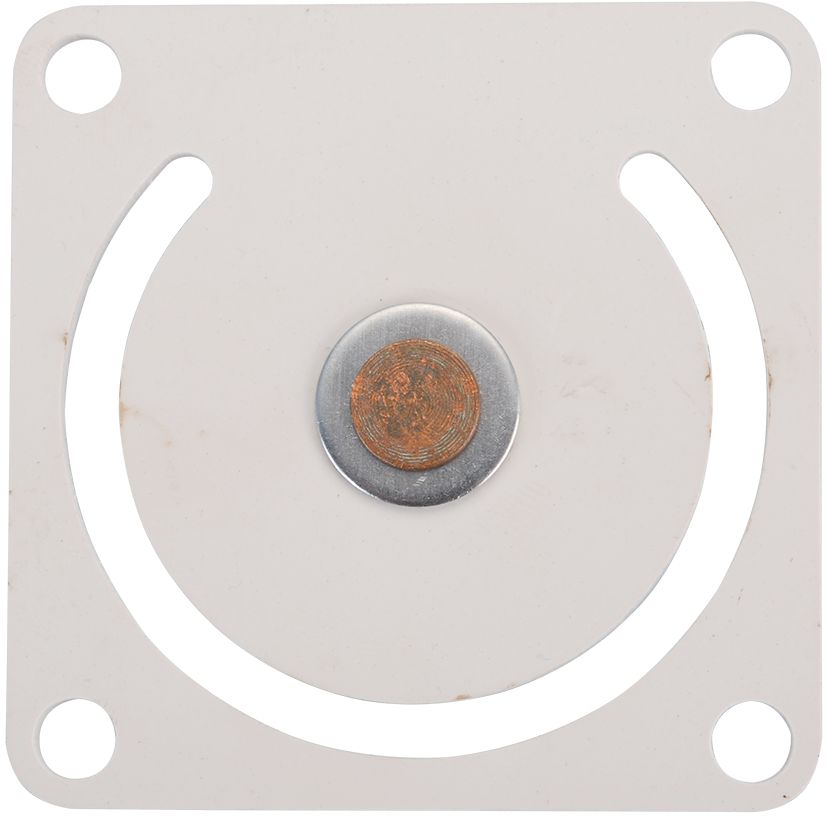

1 x Druckventilplatte mit Gewicht und Kupferniete 0102042
2 x Manschette 0102050
1 x Kolbenstangendichtung 0101017
1 x Drucklippenventil 0101052
1 x O-Ring 5 x 2,5 NBR 0101046
1 x Druckfeder 0101032
1 x Splint 2 x 12 DIN 94 A20101044
1 x Spülventilplatte mit 4 Hülsen 0101034
1 x Spülventilfeder 0101035

Ähnliche Artikel

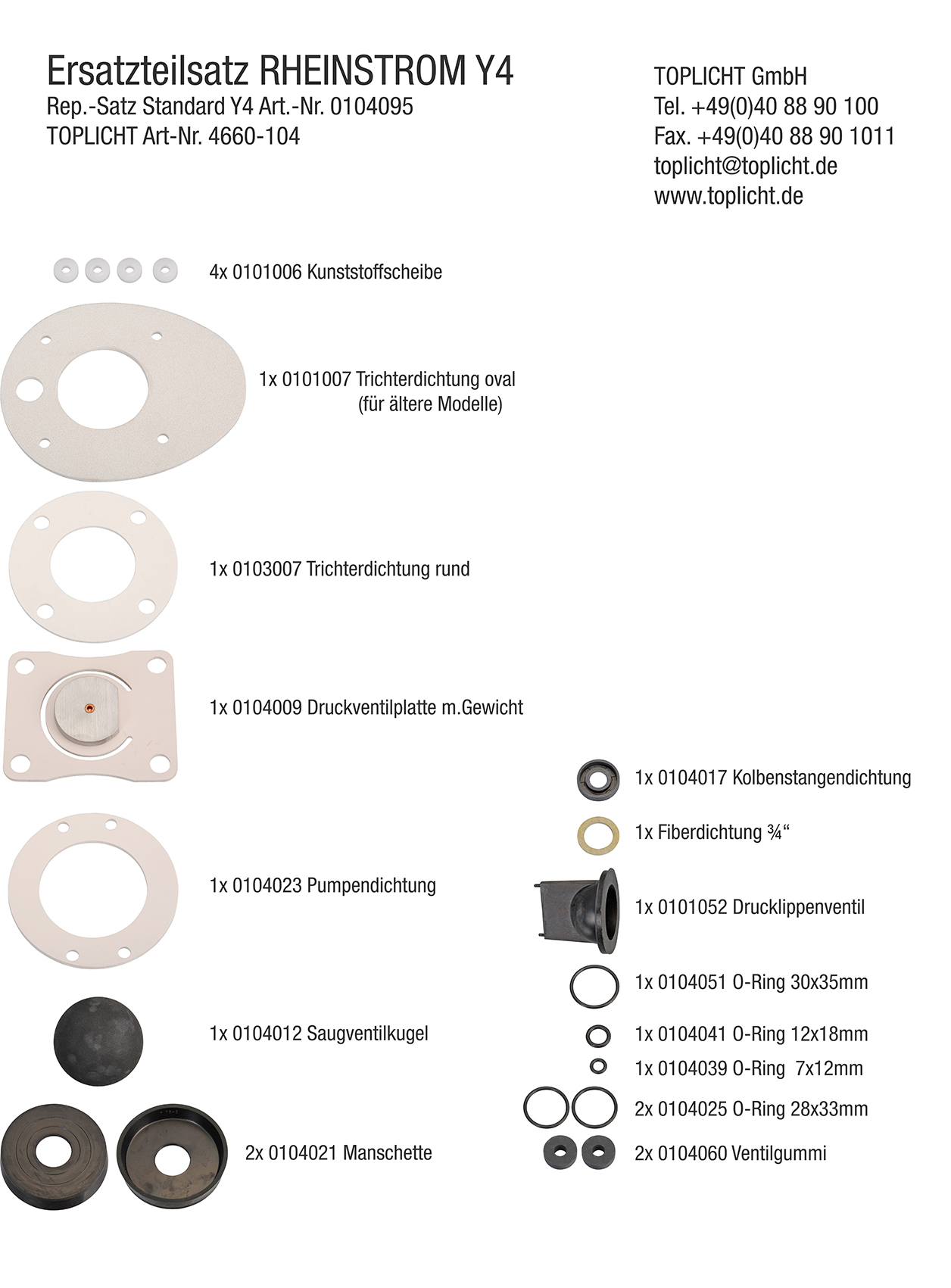

Reparatursatz für die Y4-Toilette RHEINSTROM
Standard Reparatursatz für die Y4-Toiletten von RHEINSTROM.Inhalt: Bitte beachten Sie das PDF unter "Downloads & Informationen".

199,00 € *
Druckventilplatte für RHEINSTROM Toilette Y2 oder Y3
Die Druckventilplatte von RHEINSTROM ist aus Gummi und hat ein Metallgewicht. Dieses RHEINSTROM-Ersatzteil ist geeignet für die Y2 oder Y3 Toilette.

51,90 € *

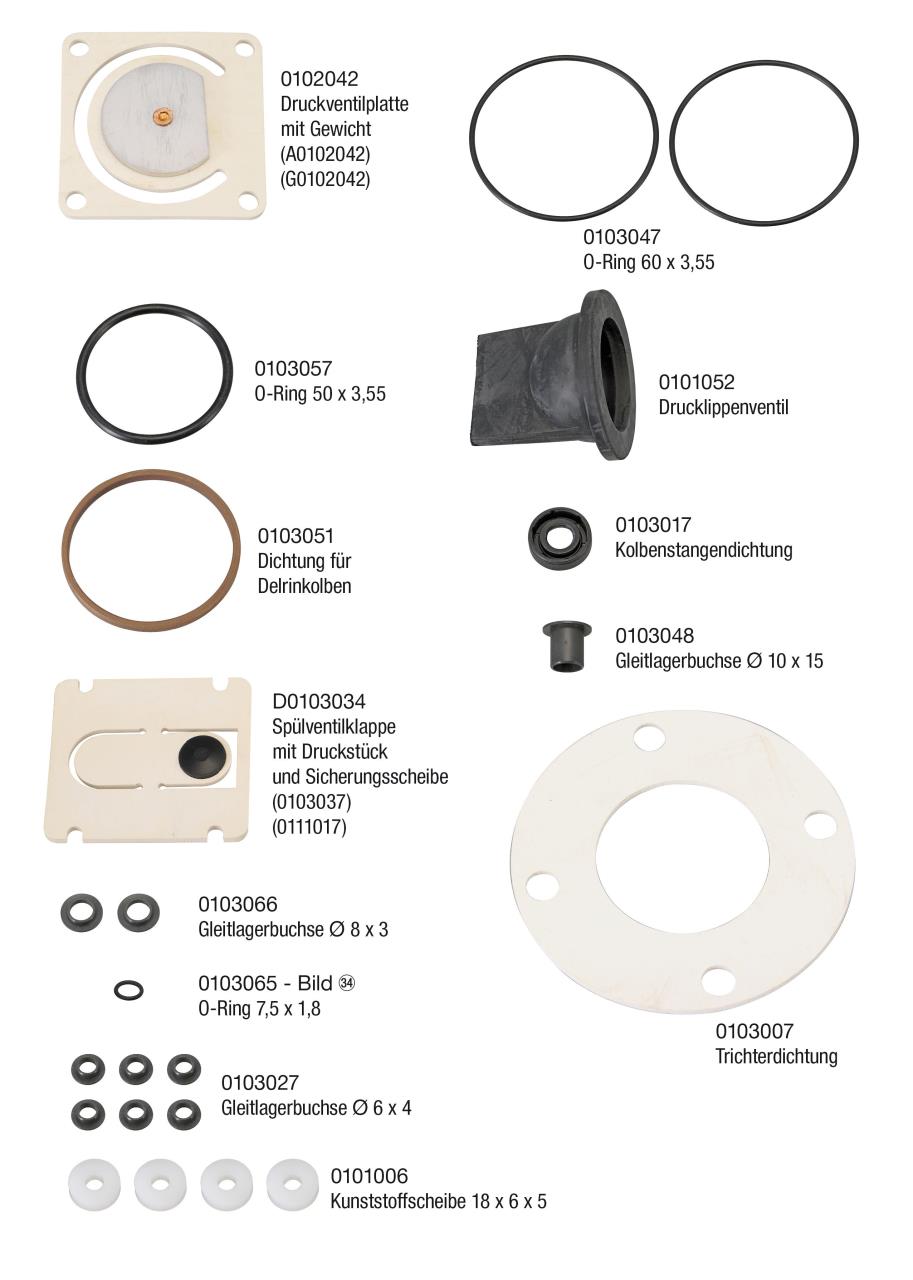

Reparatursatz für die Y3-Toilette RHEINSTROM
